Gate Valves
Manufacturer, Dealer, Supplier and Exporter of Gate Valves
Designed for high pressure and high temperature applications, for a wide range of except slurries and viscous fluids. These valves are generally used in the wide open or closed position, are not recommended for throttling service because throttling causes disc chattering and vibration which is likely to erode the seating surface and cause leakage.
Application: Petroleum, Power Generation, Chemicals, Fertilizer, Steel industry, Isolation Drain, Shut-Off Valves, Feed Water and Steam
Operators: Handwheel, Chainwheel, Gear Electrical Actuator, Pneumatic/Hydraulic, Actuator Operated.
Special Features Pressure Sealed joints/ Double Block and Bleed/ Cryogenic Service to BS 6364/ Nace Specifications (MR-01-75), Position Indicator, Drainplug & Bypass Arrangement.

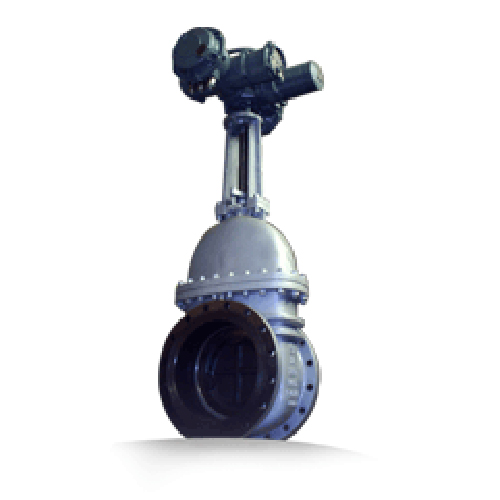

WEDGE GATE VALVES
WEDGE GATE VALVES
Unitek Valves make Wedge Gate Valves are available in pressure rating right from 150 class to 2500 class & the sizes range from.
ASTM Specifications: Carbon Steel,Alloy Steel,Low Temperature carbon Steel, Stainless Steel, Duplex Stainless Steel,Super Duplex Stainless Steel.
- Design: API 600 / API 6D / API 603 / BS 1414
- Face to Face: ASME B 16.10 / API 6D
PARALLEL SLIDE GATE VALVES
PARALLEL SLIDE GATE VALVES
Unitek Valves make Parallel Slide Gate Valves are available in pressure rating 150 class to 900 class & the sizes range from.
ASTM Specifications: Carbon Steel,Alloy Steel,Low Temperature carbon Steel, Stainless Steel, Duplex Stainless Steel,Super Duplex Stainless Steel,any other special material.
- Design: ASME B 16.34-2004/ API 6D / DIN
- Face to Face: ASME B 16.10 / DIN
THROUGH CONDUIT GATE VALVES
THROUGH CONDUIT GATE GATE VALVES
Unitek Valves make Through Conduit Gate Valves are available in pressure rating 150 class to 600 class & the sizes range from.
ASTM Specifications: Carbon Steel,Alloy Steel,Low Temperature carbon Steel, Stainless Steel, Duplex Stainless Steel,Super Duplex Stainless Steel,any other special material.
- Design: ASME B 16.34-2004/ API 6D / DIN
- Face to Face: ASME B 16.10 / DIN
