Utam Make Bronze Bonnet Globe Valve
Utam Make Bronze Bonnet Globe Valve Dealer, Supplier and Exporter

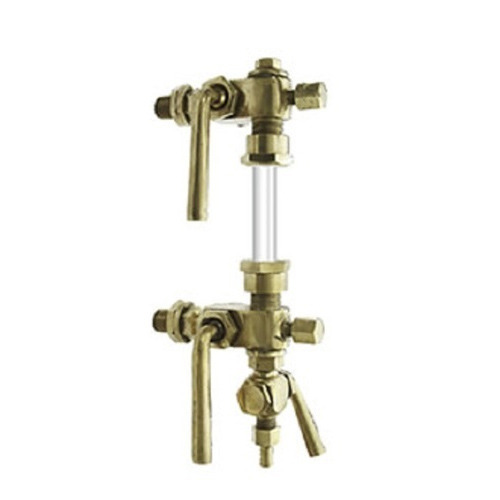

Description: Utam make bronze asbestos packed water level gauge,male thread ends to bs 21 suitable for maximum boiler operating pressure 10.54 kg/cm2 and 225° c temp suppiled with ibr form iiic duly signed by director of boilers punjab.
Specifications:
- Max Working Pressure: 21.1 kg/cm2(300 psig)
- Hydraulic Test Pressure: 42.2 kg/cm2(600 psig)
- Max Permissible Temperature: 225ºC(437F)
- Material: Bronze
- End details: Screwed Female BSP Parallel Threads to BS:21
Globe Valve No. 9:
- Inside Screw, Rising Stem with Backseat Arrangement
- Stainless Steel Trim & Stem Suitable for Steam Lines
- Teflon / Neoprene Seated Suitable for Oil, Air & Gas
Pay Mode Terms: L/C (Letter of Credit),T/T (Bank Transfer),D/P,D/A,Other
Send EnquiryInstallation: The Trap should be installed horizontally with flow direction as indicated on the valve . the trap should be below the drainage point of the equipment. Float always rises & falls vertically in horizontal plane. For correct working of trap, the arrow on the name plate should be indicating in vertically downwards direction.
Size
| Dimensions (in mm) | ||||
| SIZE | A | L | H~ | W~ |
| 15 | ½”BSP | 68 | 133 | 67 |
| 20 | ¾”BSP | 84 | 157 | 73 |
| 25 | 1” BSP | 92 | 170 | 85 |
| 32 | 1-1/4” BSP | 105 | 172 | 100 |
| 40 | 1-1/2” BSP | 118 | 200 | 100 |
| 50 | 2” BSP | 145 | 237 | 132 |
| 65 | 2-1/2” BSP | 180 | 266 | 148 |
| 80 | 3”BSP | 198 | 290 | 148 |
| 100 | 4”BSP | 252 | 300 | 172 |
